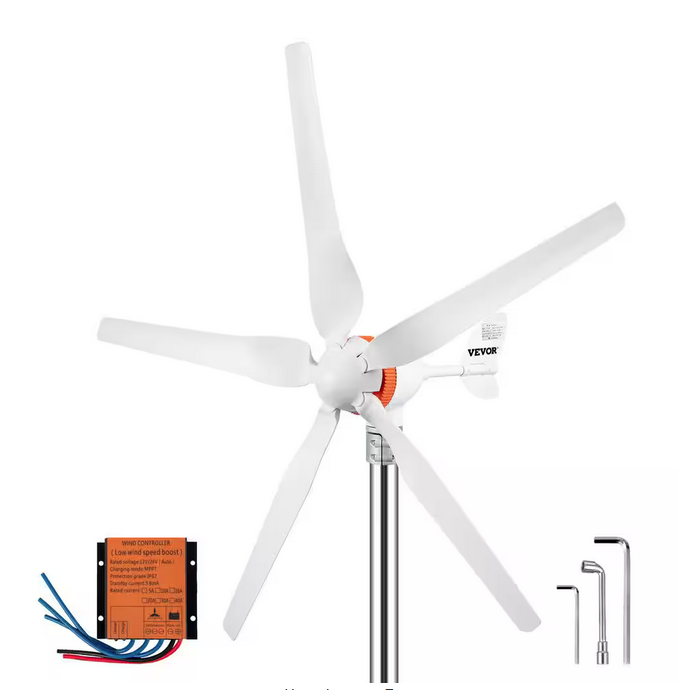

Wind Turbine Generator 500-Watt 5 Blades Auto Adjust Windward Direction Wind Power Generator with MPPT Controller

Wind Turbine Generator 500-Watt 5 Blades Auto Adjust Windward Direction Wind Power Generator with MPPT Controller

Regular price $205.86 USD
Regular price Sale price $205.86 USD
Sale Sold out

Highlights

  • Excellent generator: the generator adopts 300-Watt/12-Volt 3-phase NdFeB permanent magnet synchronous motor, low noise and long lifespan, the outer shell is designed for fast heat dissipation and the external MPPT controller provides you an efficient tracking performance
  • Low start-up speed: the blade is made of nylon fiber, waterproof, corrosion-proof and lightweight, temperature bearing is available from minus 40℃ to 80℃, the generator's start speed only needs 2 m/s and it can automatically adjust the direction to get the maximum wind speed
  • Easy assembly: this wind turbine kit will come with the hoop installed, more convenient than the flange, meanwhile, the blade is accurately designed with the hub and fixing accessories, providing easier assembly for you
  • High-quality material: the turbine's body is made of die-casting aluminum and the tail is made of stainless steel, features of casting shape, model in 1, high tenacity, the surface of the turbine is disposed of baking varnish, corrosion-proof, waterproof and durable
  • Various application: with high wind energy utilization and efficiency, the wind turbine can be widely used in charging for home monitoring, motor home, boats, gazebos, chalets, marine and any other home usage
  • Rated power: 500-Watt, max power: 500-Watt, rated voltage: 12-Volt/AC, rated current: 29 Amp
  • Hoop diameter: 2 in.rotor diameter: 47 in.net weight: 21 lbs.
  • Blade numbers: 5, blade material: nylon fiber
  • Start-up wind speed: 6.56 ft./s, rated wind speed: 42.65 ft./s, survival wind speed: 164 ft./s, rated speed: 900 r/min
  • Working temperature: minus 104℉~176℉/minus 40℃~80℃, package dimension: 27 in. x 11.5 in. x 7.5 in.
  • Generator: 3-phase ac permanent magnet, magnetic material: neodymium iron boron, controller system: electromagnetic/yaw
  • Regulating way: automatic adjustment, cabin material: die casting aluminum with paint coated finish, tail material: stainless steel with paint coated finish
  • Package content: 1 x wind turbine generator, 1 x mppt controller, 1 x set screws and nuts, 1 x instruction manual, 5 x nylon blades, steel pipe does not include
