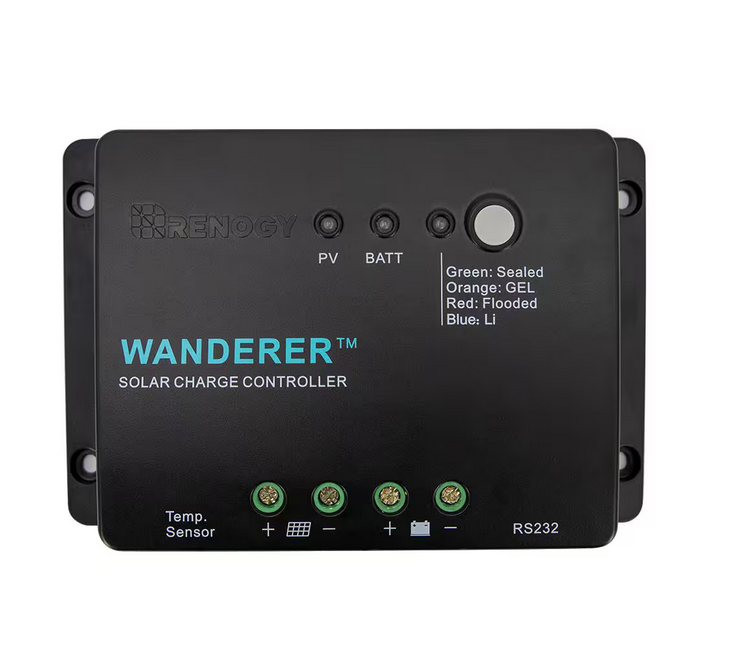

Wanderer Li 30 Amp PWM Charge Controller _ 91003567430

Highlights

• Optimized for a 12-Volt system, deep cycle sealed, gel, flooded, and lithium battery option ready
• Smart 4 stage PWM charging (bulk, boost, float, and equalization) and temperature compensation increases battery life and improves system performance
• Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current, multiple LED indicators for easy to read charge status and battery information
• Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of DC HOME smartphone app
• Simple Install: Fully open the hatch (CCW), insert the appropriate wires, and completely close the hatch (CW).
• Installation Notes: The default starting position of the Wanderer controller terminal hatches are closed (in the UP position) that could mistakenly look like an open wire hatch. Make sure to FIRST lower each terminal hatch by screwing the terminals counterclockwise (CCW) to expose the wire terminal hatch to the open position. THEN secure each cable by rotating the screws clockwise (CW) to the closed position.
