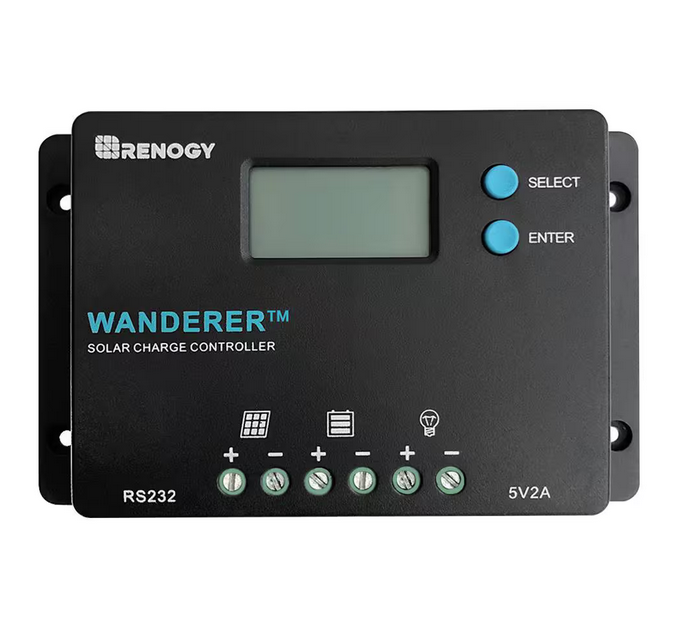

Wanderer 12/24-Volt 10 Amp PWM Solar Charge Controller with USB Ports

Highlights

• Optimized for a 12-Volt/24-Volt system; deep cycle sealed (AGM), Gel, flooded and lithium battery option ready
• Backlit LCD screen for displaying system operating, diverse load control and error codes
• Integrated 5-Volt 2 Amp USB ports to charge USB devices
• Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy DC Home smartphone app
• Smart 4 stage PWM charging (bulk, boost, float and equalization) and temperature compensation increases battery life and improves system performance, intelligent protection against reverse polarity, overcharging, short-circuit and reverse current
• Installation Notes: The default starting position of the Wanderer controller terminal hatches are closed (in the UP position) that could mistakenly look like an open wire hatch. Make sure to FIRST lower each terminal hatch by screwing the terminals counterclockwise (CCW) to expose the wire terminal hatch to the open position. THEN secure each cable by rotating the screws clockwise (CW) to the closed position.
• Simple Install: Fully open the hatch (CCW), insert the appropriate wires, and completely close the hatch (CW).
