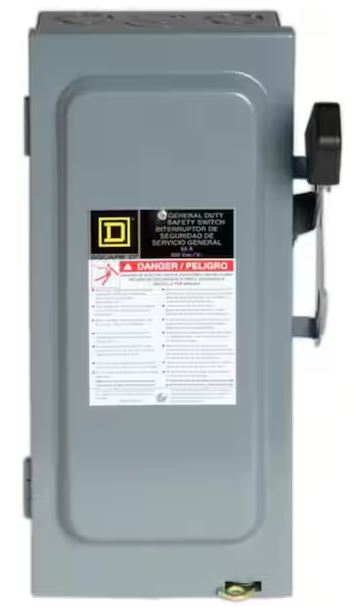

30 Amp 240-Volt 3-Pole 3-Phase Fused Indoor General Duty Safety Switch - 91001409379

Highlights

• This Safety Switch is compatible with Square D transformers, panelboards, load centers, lighting, contactors, I-Line and residential QO or Homeline circuit breakers, NQ & NF panels
• 4-wire design with 3 blades and fuse holders and 1 neutral
• 120/240-Volt AC
• 30 Amp Maximum Rating
• NEMA type 1 metallic enclosure for indoor use
• 1.5/3.0 Horsepower 240 VAC single phase (standard/maximum)
• 3.0/7.5 Horsepower 240 VAC 3 phase (standard/maximum) or corner grounded delta system
• The lugs on this device will accept (1) #14 - 6 AWG copper or (1) #12 - 6 AWG aluminum conductors per phase.
• 100 kA UL listed short circuit withstand rating maximum with class R fuses and class R kit RFK03H properly installed, sold separately
• This safety switch is compatible with H, K, or R Fuse Type
• Neutral bar included
• UL listed
• Protection from live parts with cover closed
• Protection from arcing during switching
• Provides emergency disconnecting means
• Protects switching components from environment
• Tangential knockouts for ease of installation
• OSHA lockout
