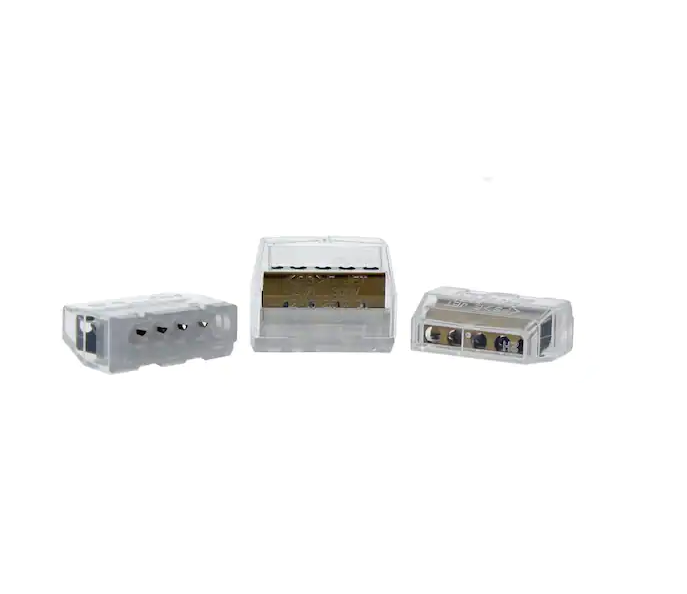

In-Sure 5-Port Push-In Wire Connector (150-Jar)－91003445435

Highlights

• Push-in wire connector to join and insulate 5 wires
• No-twist design reduces repetitive motion fatigue
• Minimum capacity of 5 #20 solid wires
• Maximum capacity of 5 #12 solid wires
• Stranded wire range: #16 - #12 AWG ( 19 strand) and #18 AWG ( 7 strand)
• Tin bonded stranded wire range: #18 - #14 AWG ( 19 strand)
• Rated to 600-Volt maximum
• UL 94V-2 flame-retardant shell rated at 221 degree F
• UL Listed to 486C and CSA certified to C22.2 #188
• UL 467 listed for grounding and bonding applications
