Standard Wire Connector, Assortment (30-Pack) - 91002748479

Highlights

• Ribbed cap provides positive grip for fast, easy installation

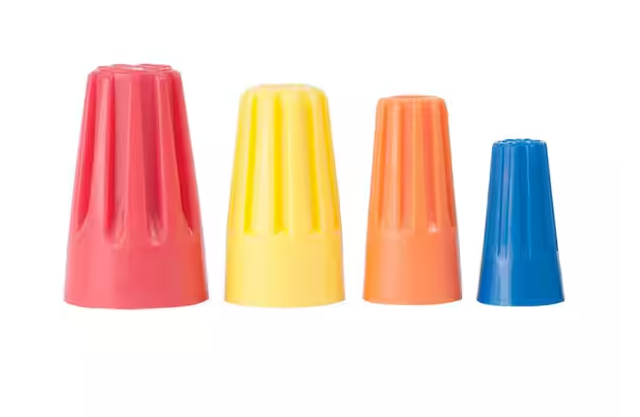

• Assorted 30 Pack: Blue (8), Orange (8), Yellow (8), Red (6)
• For use with copper conductors: Blue (#22 to #14), Orange (#22 to #14), Yellow (#22 to #10), Red (#20 to #8)
• Minimum Wire Range: Blue (3 - #20), Orange (2 - #18), Yellow (3 - #20), Red (2 - #14)
• Maximum Wire Range: Blue (3 - #16), Orange (2 - #14), Yellow (2 - #12), Red (4 - #12)
• Maximum Rated Voltage: Blue (300V) :Orange, Yellow, and Red (600V (Building Wire) / 1,000V (Fixtures and Signs))
• Temperature Rating: 105 °C / 221 °F
• Wire Strip Length: Blue (3/8 in (1/2 in #16 and smaller)), Orange(5/16 in (3/8 in #16 and smaller)), Yellow(3/8 in (7/16 in #16 and smaller)), Red(7/16 in (1/2 in #16 and smaller))
• Intended only for use with copper wiring (Cu/Cu Only). Not for use with aluminum wires.
• For use in dry locations only
• UL 486C Listed and CSA 22.2 No.188 Certified
• UL 94V-2 flame-retardant shell
