Ratcheting Pass-Thru Modular Crimper, Combination Radial Stripper and (20-Pack) Pass-Thru Modular Data Plugs CAT6 - 91009471571

Highlights

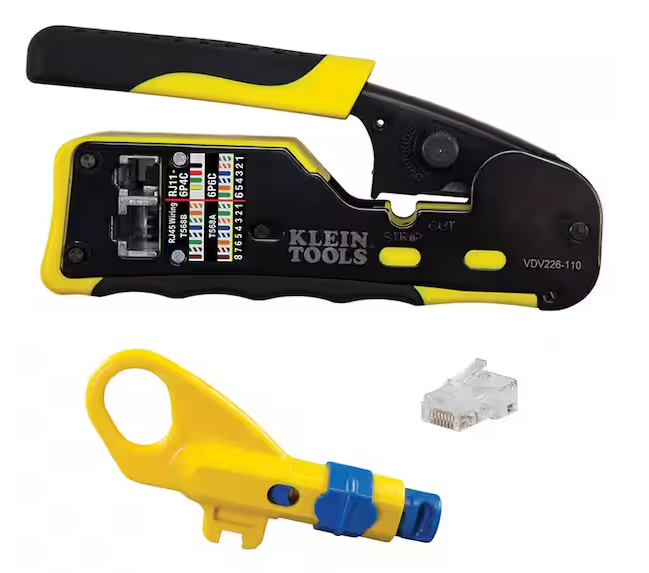

• Crimper tool set includes a Ratcheting Pass-Thru Crimper, Radial Cable Stripper, and Pass-Thru modular data plugs (20 connectors)
• The Pass-Thru Crimper is a fast, reliable modular crimp-connector install tool for voice and data applications with pass-thru RJ45 connector plugs
• Wire stripper, crimper, and cutter all-in-one tool for paired-conductor data cables
• Trims flush to end face of connector eliminating unintended contact between conductors
• Crimps and trims Klein Tools RJ45 Pass-Thru Connectors
• Full-cycle ratchet mechanism ensures complete connector termination
• On-tool wiring guide helps minimize wiring errors
• Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
• Combination Radial Stripper easily and cleanly strips both coaxial and twisted-pair cable including RG59, RG6/6Q, CAT3, CAT5 and CAT6 sizes
• Precision high-carbon steel blades automatically adjust to twisted pair cable diameters; won't damage internal conductors
• Finger loop for smooth, easy rotation
• Premium tool features a slide depth gauge to pre-measure coax cable for quick, precise and repeatable 5/16 in. (7.9 mm) and 1/4 in. (6.4 mm) strips
• Additional external blade in a structured design allows user to slit wire jacket for mid-span access or to open lengthwise
• Klein exclusive pass-thru connectors provide fast, reliable connector installations for data applications
• CAT6 cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 50 µ in. gold plating on all contact surfaces
• 8-position, 8-contact pass thru style data plug for solid or stranded cable
• Includes 20-connectors
