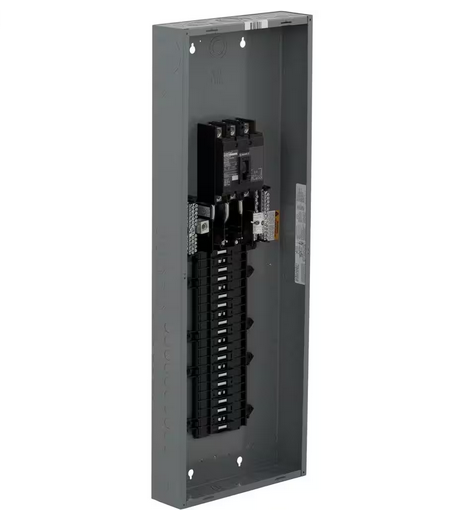

QO 200 Amp 42-Space 42-Circuit 3-Phase Main Breaker Load Center - 91001320869

Highlights

• Cover sold separately
• Accommodates plug-on secondary surge arrestor (sold separately)
• Overhead/underground feed simply by rotating the device before installing
• 3 phase
• Rated 208Y/120 VAC and 25,000 AIR short circuit current rating
• Designed with straight-in mains to save expensive cable and time
• Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Thermoplastic interior is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
• For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
• 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire

Product Information
