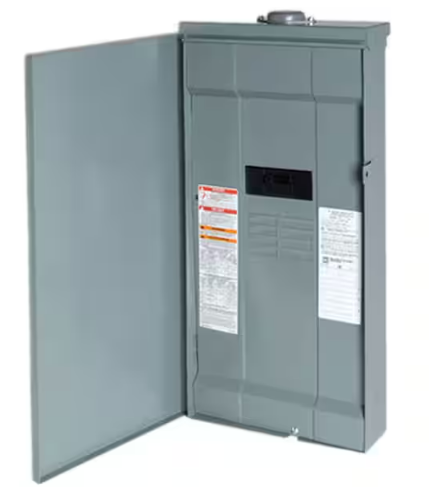

QO 150 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug - 9767247

Highlights

• Includes an outdoor cover and factory-installed QOM2150VH main breaker with feed-thru lug
• Accommodates plug-on secondary surge arrestor (sold separately)
• Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
• Single phase
• Rated 120/240 VAC and 10,000 AIR short circuit current rating
• Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
• Designed with straight-in mains to save expensive cable and time
• Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Thermoplastic interior is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
• For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
• 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
• Made in the USA
