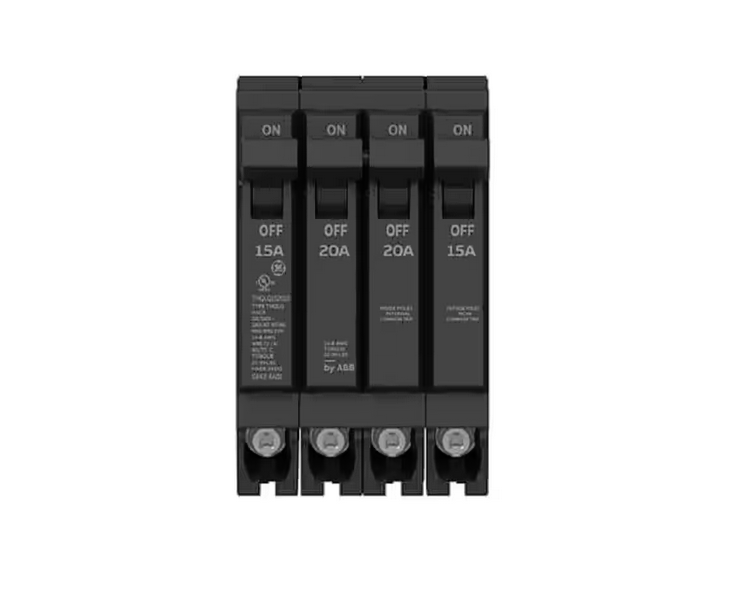

Q-Line 2-15 Amp Single-Pole 1-20 Amp Double-Pole Quad 120/240-Volts Circuit Breaker - 91010913171

Highlights

• Potential to get twice the number of circuit breaker poles in each standard 1 in. space
• Compatibility with new and existing single-phase ABB and GE by ABB power mark load centers and meter socket load centers made over the last 50-plus years
• Flexible to work in all power mark gold load center mounting positions, no THQP 1/2 in. breaker wing stabs required
• Fast wiring box type lugs keep wires in place while tightening
• Lugs are multi-wire listed for up to 2 #10 wires (handy for connecting surge protective devices such as ABB's thaumaturge)
• Quick-make-quick-break mechanism
• Easy-to-read trip indication via 3-handle positions: on, tripped (center position) and off
• Convenient combination robertson/flat head lug screws, ensuring positive screw head engagement and flexible installation
• Rated for use on single phase 120-Volt/240-Volt and 120-Volt/208-Volt VAC systems
• 60°C/75°C conductor rated
• HACR and SWD rated
• Meets UL and CUL 489-requirements
• Protection up to 10,000 Amp of available fault current
