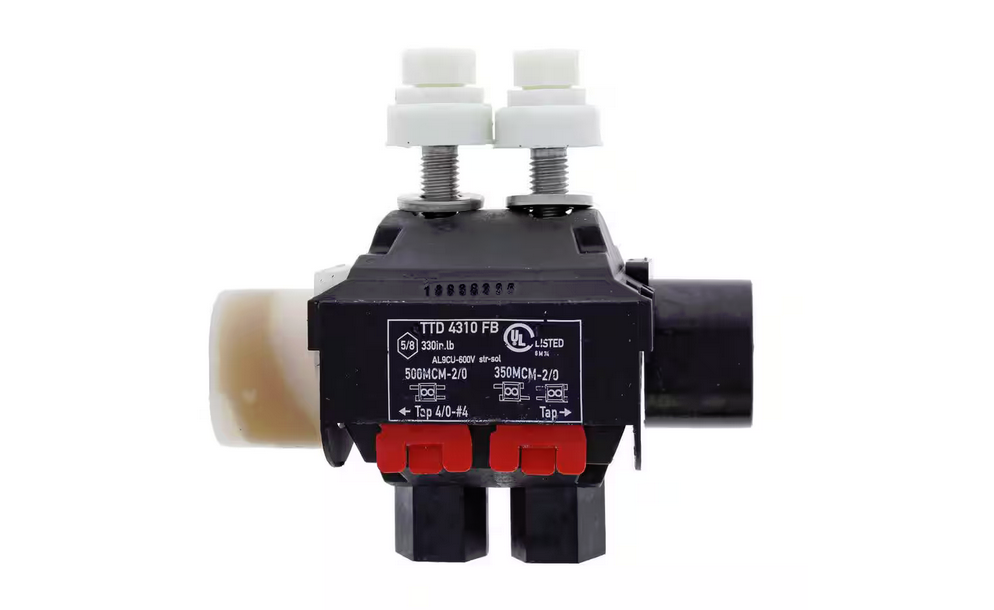

Main 500 - 2/0 AWG, Tap 4/0 - 4 AWG B-Tap Connector - 91003531820

Highlights

• Breakaway torque nut snaps off when UL torque requirements are met
• Second nut remains for easy connector removal
• Self-insulated housing eliminates the need for tape
• Safely installs on energized systems Grease-filled end cap seals end of conductor for superior weather protection
• Grease-filled boots protect copper teeth from corrosion and prevent arcing
• Hardened copper teeth pierce insulation and bite into conductors
• Rated to 194 F / 90C and 600V
• Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
• Conductor Range: Run 500-2/0 AWG, Tap 4/0-4 AWG
