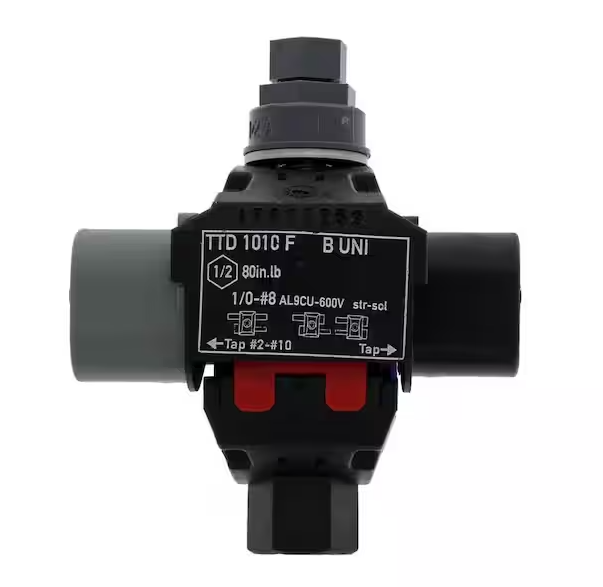

Main 1/0 to 8 AWG, Tap 2-10 AWG B-Tap Connector - 91003530690

Highlights

• Breakaway torque nut snaps off when UL torque requirements are met
• Second nut remains for easy connector removal
• Self-insulated housing eliminates the need for tape
• Safely installs on energized systems Grease-filled end cap seals end of conductor for superior weather protection
• Hardened copper teeth pierce insulation and bite into conductors
• Rated to 194 F / 90C and 600V
• Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
• Conductor Range: Run 1/0-8 AWG, Tap 2-10 AWG
