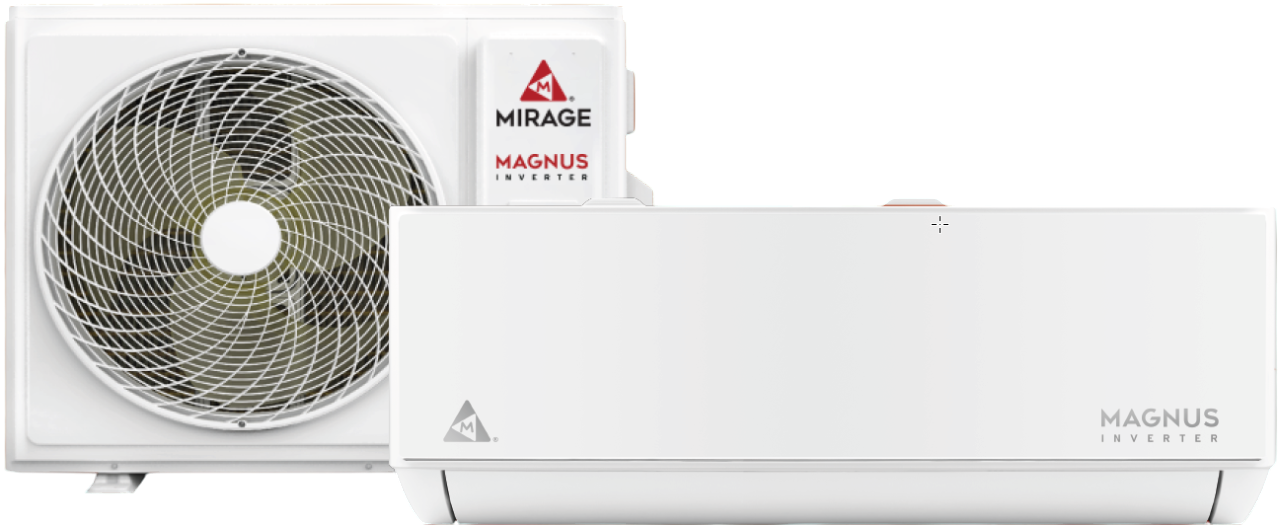

MAGNUS INVERTER IMZH181C/OMZH181C - 1.5 Ton

MAGNUS INVERTER IMZH181C/OMZH181C - 1.5 Ton

$1,395.00 USD
$1,395.00 USD
Sale Sold out
Type      cooling&heating
Control Type remote
Power Supply 208-230V~/60Hz/1P
Rated Cooling (95°F/35°C)  Rated cooling capacity (95°F) Btu/h 18000
Cooling Capacity Range Btu/h 4000~19000
EER² (95°F) Btu/W.h 12.5
SEER² Btu/W.h 23
Rated Heating Rated Heating Capacity(47F/8.3C) Btu/h 19000
Range Heating Capacity Btu/h 4000~21000
HSPF² Rating (Region IV) Btu/W.h 9.5
COP2 (47°F) W/W 3.81
Rated Input Consumption Cooling W 1390
Heating W 1360
Rated Current Cooling A 6.2
Heating A 6.1
ENERGY STAR YES
Min. Circuit Ampacity A 12
Max. Fuse Size A 20
Moisture removal Liters/h 2.2
Max Allowed Pressure PSI 750
Indoor Noise Level at Cooling Turbo/High/Med/Low/Mute 50/47/43/38/34
Outdoor Noise Level dB(A) 53
Connecting Pipe Gas inches 1/2"
Liquid inches 1/4''
Connecting Wiring Size x Core number 4×16AWG
Suitable area sq.ft Up to 1000
*** Indoor Unit ***
Indoor Motor Motor Brand Broad-Ocean
Indoor air circulation Turbo/High/Med/Low/Mute CFM 735/676/529/423/394
*** Outdoor Unit ***
Refrigerant Type R454B
Oz 45.5
Compressor Brand SANYO
Model C-6RZ146H1DJ
Outdoor Motor Motor Brand Broad-Ocean
Net dimensions (W x D x H) Indoor inches 43.18×13.07×8.74
Outdoor inches 36.49x14.96x27.51
Net weight Indoor lbs 30.9
Outdoor lbs 86
Packing dimensions (W x D x H) Indoor inches 45.87×15.95×11.61
Outdoor inches 37.40x16.53x28.81
Gross weight Indoor lbs 35.3
Line Set ft 25
Operation temperature °F 62~86
Ambinet Temperature Indoor (Cooling/ Heating) °F 62~89/32~86
Outdoor (Cooling/Heating) °F 5~131/-13~86
