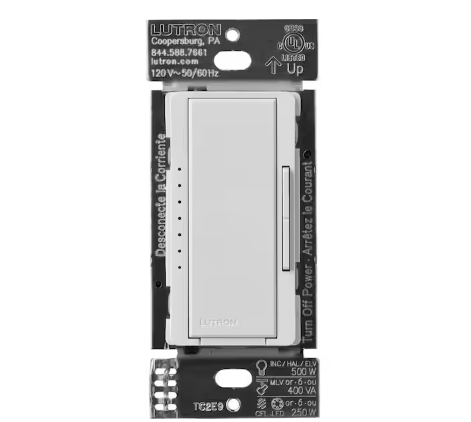

Maestro PRO LED+ Tap Dimmer Switch for 250W LED, 500W ELV, 400W MLV, Single Pole/Multi-Location, Palladium (MA-PRO-PD) - 91011224805

Highlights

• Maximum rating: 250W LED, 500W incandescent / halogen/ ELV, 400VA MLV, or 20 hi-lume 1% 2-wire (LTE) LED drivers
• Neutral optional for LED, CFL, and incandescent/halogen; neutral required for ELV, MLV, dimmable fluorescent ballasts, and hi-lume 1% LED drivers
• Single pole or multi-location dimming from up to 9 locations with companion dimmer (MA-R-xx sold-separately)
• Advanced programming mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select
• Phase auto-select: chooses between either reverse or forward phase (when neutral is connected the automatic default is reverse phase; when neutral is not connected, the automatic default is forward phase)
• Power failure memory: should power be interrupted; the control will return to its previous state when power is restored
• Screw terminals for easy install; can be installed on either load or line side of circuit
• While load is on green indicator lights brighten and reflect light level; when load is off: Indicator lights remain in a soft glow state
• Maestro pro LED+ dimmers and wall plates are available in 10+ colors (wall plate sold separately)
