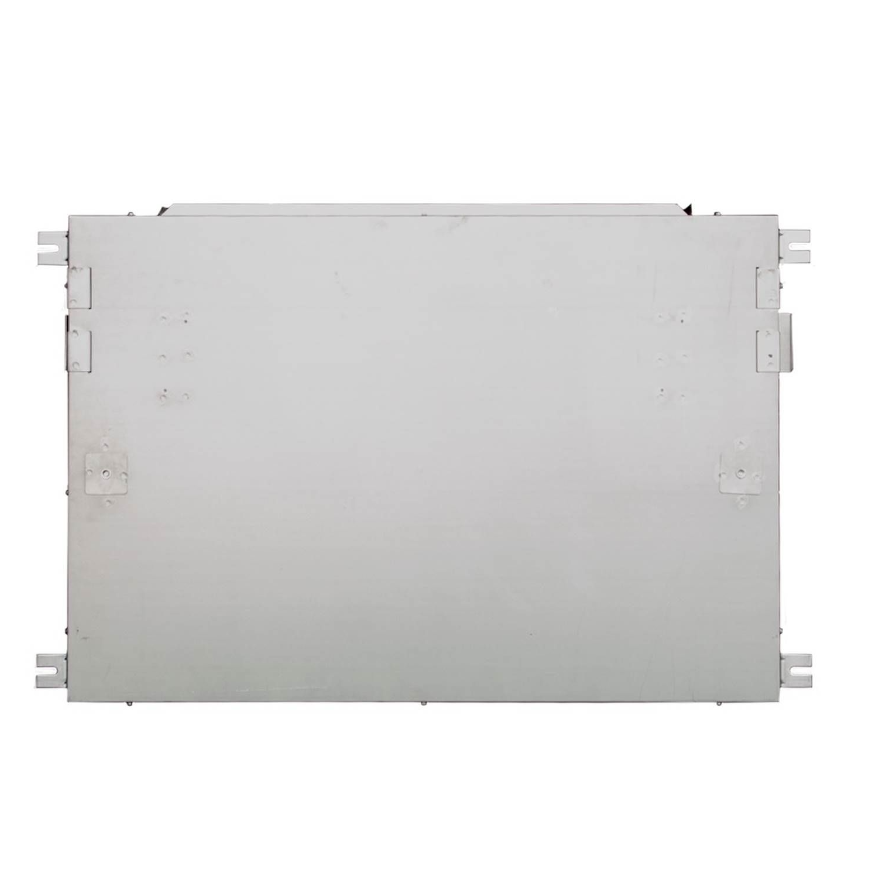

M-Series Soffit Fan Coil 36,000 BTU 3 Ton Cased TXV - 974946
M-Series Soffit Fan Coil 36,000 BTU 3 Ton Cased TXV - 974946
Regular price
$1,002.89 USD
Regular price
Sale price
$1,002.89 USD
Unit price
per
Couldn't load pickup availability
M-Series Soffit Fan Coil 36,000 BTU 3 Ton Cased TXV - 974946
- Designed for horizontal orientation only and are suitable for ceiling installations in conditioned spaces.
- Factory installed TXV.
- 10 year parts warranty.
- Utilizes a 5-speed ECM motor.
- Equipped with sweat-type connections and vapor-charged with dry nitrogen.
Product Details
| Title | Detail |
|---|---|
| Brand Name | |
| MFG Name | |
| MFG Model ID | APCE36B1MN1TA |
| MFG Product ID | APCE36B1MN1TA |
| Item ID | 974946 |
| Width | 55.37 Inches |
| Depth | 27.75 Inches |
| Height | 11 Inches |
| Weight | 104 |
| Warranty Details | 10 Year Parts |
| BTUs | 36000 |
| Liquid Line Size | 3/8 Inches |
| Manufacturer Group | M-Series |
| Max Amps | 15 |
| Metering Device Type | TXV |
| Motor Type | ECM |
| Refrigerant Type | R-410A |
| Region | California |
| Suction Line Size | 3/4 Inches |
| Tonnage | 3 |
| Type | Cased |
| Voltage | 230 AC |
| Weight | 104 Pounds |
