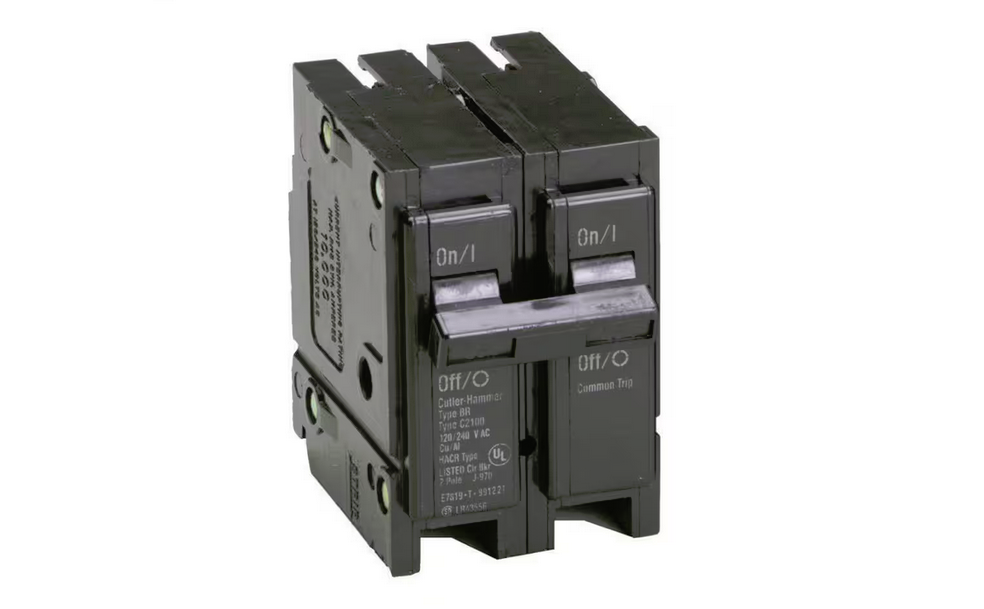

BR 15 Amp 120/240 Volts 2-Pole Circuit Breaker - 9532752

Highlights

• Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
• Amperage rating: 15 Amp
• Double pole 2 in. wide breaker
• Trips to center position - must turn off then turn back on
• For use in type BR load centers
• Type BR breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant
• Interrupt rating - 10 kAIC
• Voltage rating is 120/240-Volt
• Wire size - #14-4 AWG Cu/Al at 60 degree C or 75 degree C
• Gauge/number of wires with ground - 14/4
