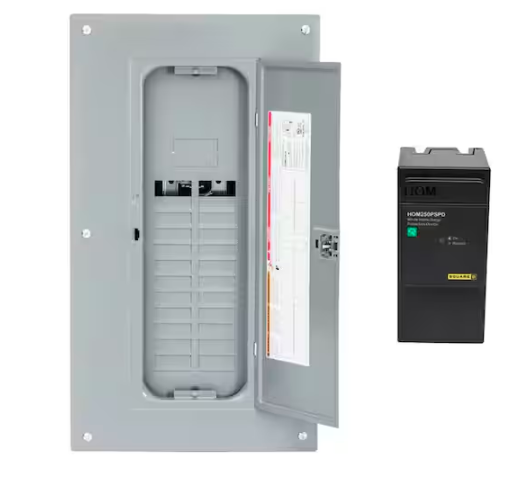

Homeline 225 Amp 40-Space 80-Circuit Indoor Main Lug Qwik-Grip Plug-On Neutral Load Center with Ground Bar, Surge SPD - 91003559201

Highlights

• Innovative cable entry system quickly grips the branch wires while eliminating steel KO's and cable connectors for a faster installation
• Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
• Each pole space accepts full-size, tandem or quad breakers
• Ground and neutral bars accept up to (3) #10-14 equipment grounds
• Includes 2 - PK15GTAL ground bars, a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately)
• 50,000 Amp/phase maximum surge current backed by our 5-year warranty - $50,000 downstream equipment protection
• Overhead/underground feed simply by rotating the device before installing
• Single phase
• Rated 120/240 VAC and 65,000 air short circuit current rating
• Automatic flush adjusting cover requires less time to complete the job
• Designed with straight-in mains to save expensive cable and time
• Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square, drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
• 2-equipment ground bars are factory-included for field mounting in 3 locations (left, right and end) letting you pick the easiest spot to wire
