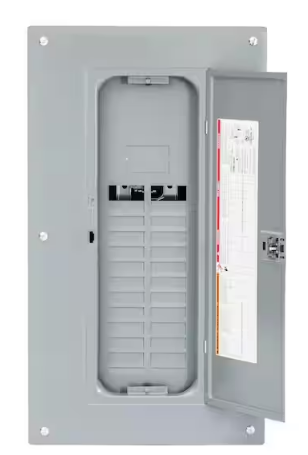

Homeline 225 Amp 40-Space 80-Circuit Indoor Main Lug Qwik-Grip Plug-On Neutral Load Center with Cover, Ground Bar - 91002336006
Homeline 225 Amp 40-Space 80-Circuit Indoor Main Lug Qwik-Grip Plug-On Neutral Load Center with Cover, Ground Bar - 91002336006
Regular price
$246.01 USD
Regular price
Sale price
$246.01 USD
Unit price
per
Homeline 225 Amp 40-Space 80-Circuit Indoor Main Lug Qwik-Grip Plug-On Neutral Load Center with Cover, Ground Bar - 91002336006
Highlights
- Innovative cable entry system quickly grips the branch wires while eliminating steel KO's and cable connectors for a faster installation
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes 2 - PK15GTAL ground bars, a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately)
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240 VAC and 65,000 air short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square, drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 2-equipment ground bars are factory-included for field mounting in 3 locations (left, right and end) letting you pick the easiest spot to wire
Product Information
Store SKU # 91002336006
