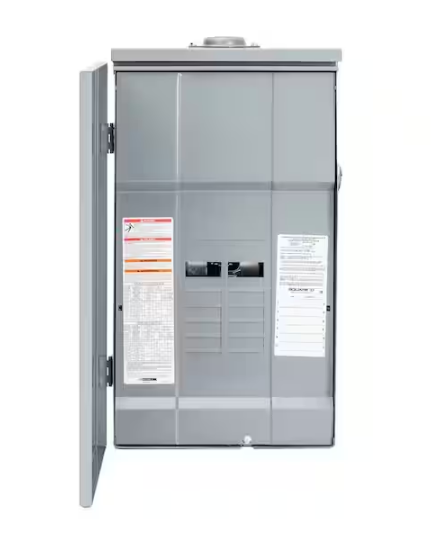

Homeline 225 Amp 12-Space 12-Circuit Outdoor Main Lug Plug-On Neutral Load Center - 91000039953
Homeline 225 Amp 12-Space 12-Circuit Outdoor Main Lug Plug-On Neutral Load Center - 91000039953
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Unit price
per
Homeline 225 Amp 12-Space 12-Circuit Outdoor Main Lug Plug-On Neutral Load Center - 91000039953
Highlights
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes a rainproof outdoor cover and is convertible to main breaker load center with a QOM2 main breaker (sold separately)
- Accommodates plug-on secondary surge arrestor (sold separately)
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Single phase
- Rated 120/240 VAC and 65,000 AIR short circuit current rating
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Designed with straight-In mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Made in the USA
