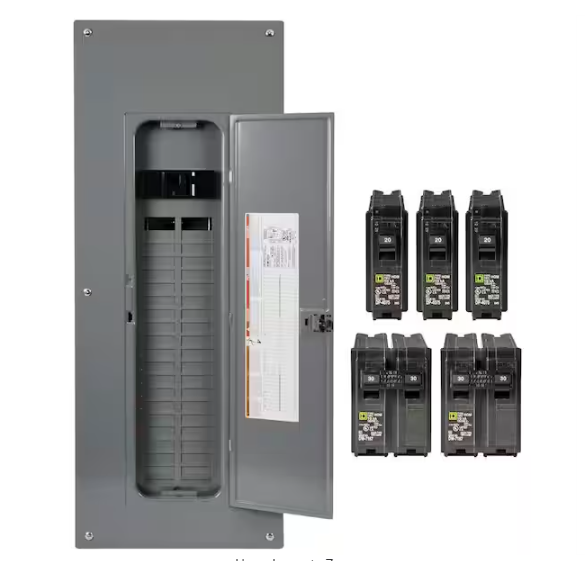

Homeline 200 Amp 40-Space 80-Circuit Panel w/ 3-20 Amp Single Pole, 2-30 Amp Double Pole Breakers, Cover-Value Pack - 91000040008

Homeline 200 Amp 40-Space 80-Circuit Panel w/ 3-20 Amp Single Pole, 2-30 Amp Double Pole Breakers, Cover-Value Pack - 91000040008

Regular price $311.32 USD
Regular price Sale price $311.32 USD
Sale Sold out

Homeline 200 Amp 40-Space 80-Circuit Panel w/ 3-20 Amp Single Pole, 2-30 Amp Double Pole Breakers, Cover-Value Pack - 91000040008

Highlights

  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space is compatible with a Square D Homeline full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface indoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase, Indoor Main Breaker Homeline Breaker Box
  • Rated 120/240-Volt AC and 22,000 AIR short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire

Product Information

Store SKU # 91000040008
