Homeline 200 Amp 40-Space 80-Circuit Main Breaker Qwik-Grip Plug On Neutral Load Center w/ Breakers, Cover-Value Pack - 91002336013

Highlights

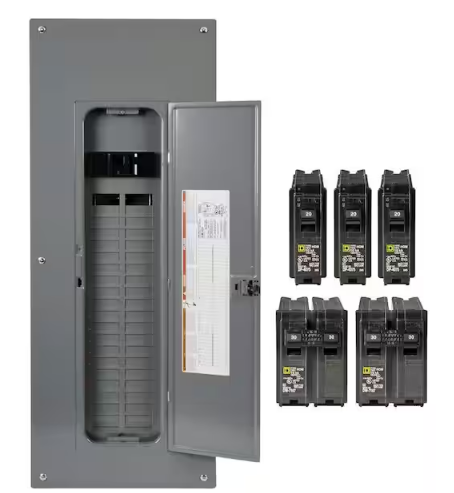

• Square D Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Cover - Value Pack
• Innovative cable entry system quickly grips the branch wires while eliminating steel knock outs and cable connectors for a faster installation
• Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
• Each pole space accepts full-size, tandem or quad breakers
• Ground and neutral bars accept up to (3) #10-14 equipment grounds flush/surface indoor cover
• Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
• Accommodates plug-on secondary surge arrestor (sold separately)
• Overhead/underground feed simply by rotating the device before installing
• Single phase, for indoor installation
• Rated 120/240-Volt AC and 22,000 air short circuit current rating
• Automatic flush adjusting cover requires less time to complete the job
• Designed with straight-in mains to save expensive cable and time
• Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• For protection from damage or theft on the job site, interiors can be easily removed with a single captive
• 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
