Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Surge SPD Value Pack - 91003559199
Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Surge SPD Value Pack - 91003559199
Regular price
$447.72 USD
Regular price
Sale price
$447.72 USD
Unit price
per
Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Surge SPD Value Pack - 91003559199
Highlights
- Innovative cable entry system quickly grips the branch wires while eliminating steel KO's and cable connectors for a faster installation
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds flush/surface indoor cover

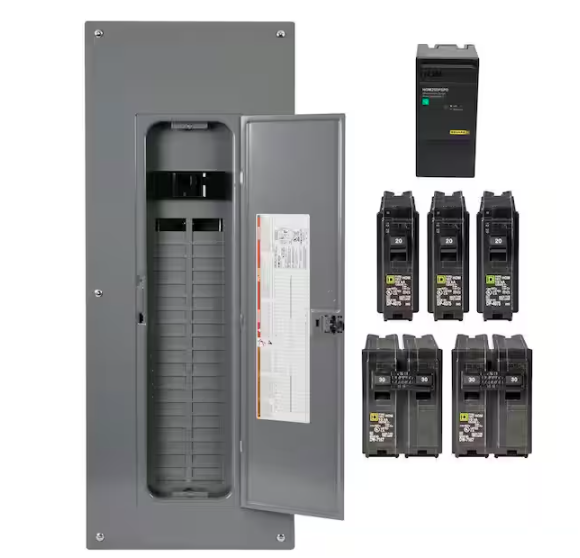

- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
- 50,000 Amp/phase maximum surge current backed by our 5-year warranty - $50,000 downstream equipment protection
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240-Volt AC and 22,000 air short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque screw
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive
- 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
