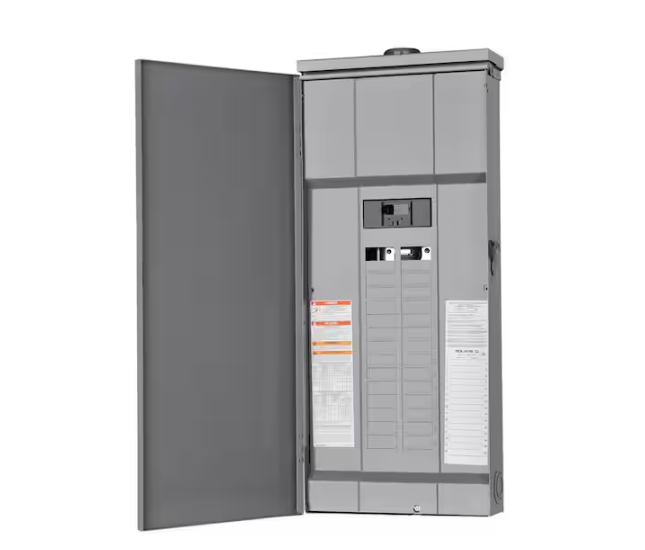

Homeline 200 Amp 30-Space 60-Circuit Outdoor Main Breaker Plug-On Neutral Load Center - 91000039991

Highlights

• 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
• Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
• Each pole space accepts full-size, tandem or quad breakers
• Ground and neutral bars accept up to (3) #10-14 equipment grounds
• Includes a rainproof outdoor cover
• Accommodates plug-on secondary surge arrestor (sold separately)
• Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
• Single phase
• Rated 120 VAC/240 VAC and 22,000 AIR short circuit current rating
• Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
• Designed with straight-in mains to save expensive cable and time
• Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• Protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
