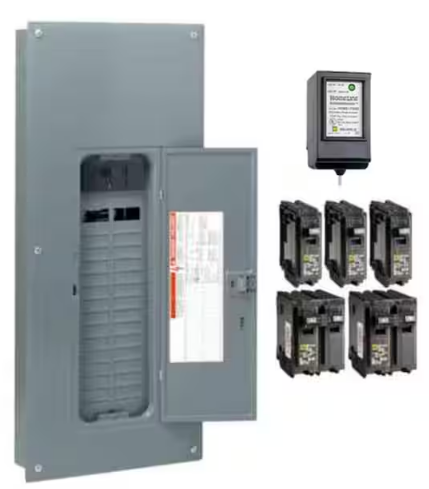

Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Surge SPD - Value Pack - 91002153762
Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Surge SPD - Value Pack - 91002153762
Regular price
$506.05 USD
Regular price
Sale price
$506.05 USD
Unit price
per
Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Surge SPD - Value Pack - 91002153762
Highlights
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240 VAC and 22,000 air short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/Square Drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Made in the USA
- Equal protection to circuits and receptacles throughout home
- Includes an LED indicator
Product Information
Store SO SKU #91002153762
Materials
Materials
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
10
