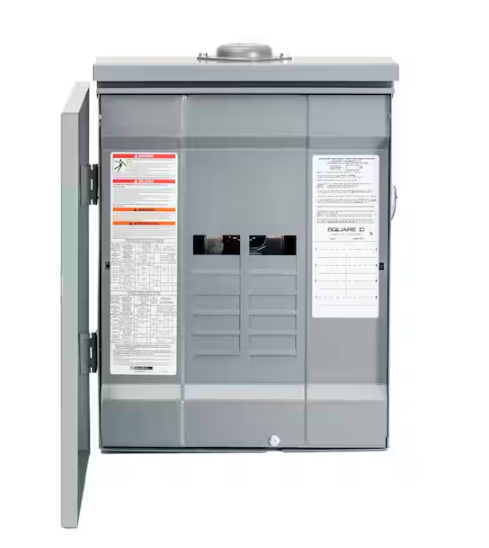

Homeline 125 Amp 8-Space 16-Circuit Outdoor Main Lug Plug-On Neutral Load Center - 91000039949

Homeline 125 Amp 8-Space 16-Circuit Outdoor Main Lug Plug-On Neutral Load Center - 91000039949

Regular price $98.57 USD
Regular price Sale price $98.57 USD
Sale Sold out

Homeline 125 Amp 8-Space 16-Circuit Outdoor Main Lug Plug-On Neutral Load Center - 91000039949

Highlights

  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes a rainproof outdoor cover and is convertible to a main breaker load center with a QOM1 main breaker
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA

Product Information

Store SKU # 91000039949

Materials

Shipping & Returns

Dimensions

10
