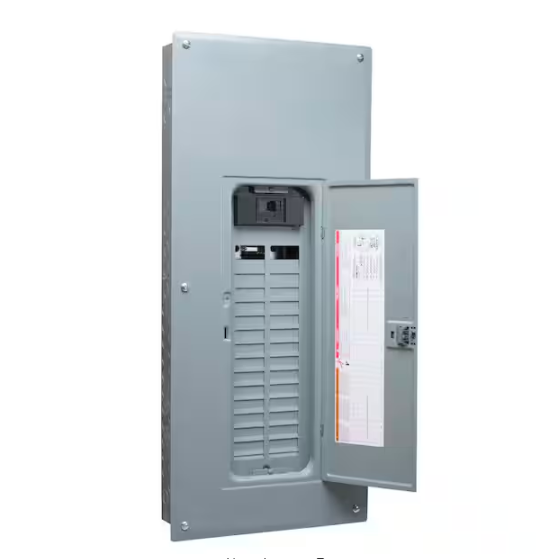

Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover - 91000039986

Highlights

• Includes a fully distributed neutral bar, allowing for the installation of homeline plug-on neutral combination arc fault breakers on any space
• Each pole space accepts full-size, tandem or quad breakers
• Ground and neutral bars accept up to 3 #10-14 equipment grounds
• Includes a combination flush/surface indoor cover
• Accommodates plug-on secondary surge arrestor (sold separately)
• Overhead/underground feed simply by rotating the device before installing
• Single phase
• Rated 120-Volt AC/240-Volt AC and 22,000 air short circuit current rating
• Automatic flush adjusting cover requires less time to complete the job
• Designed with straight-in mains to save expensive cable and time
• Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• Protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
• 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
• Plug-on neutral ready
