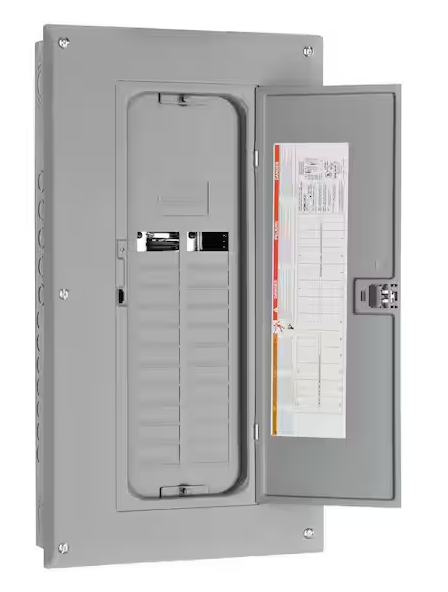

Homeline 125 Amp 20-Space 40-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar - 91000039964

Homeline 125 Amp 20-Space 40-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar - 91000039964

Regular price $99.95 USD
Regular price Sale price $99.95 USD
Sale Sold out

Homeline 125 Amp 20-Space 40-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar - 91000039964

Highlights

  • Square D Homeline 125 Amp 20-Space 40-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes a PK15GTAL ground bar, a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase, for indoor installation
  • Rated 120/240 VAC and 65,000 AIR short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 1-equipment ground bars are factory-included for field mounting in 3 locations (left, right and end) letting you pick the easiest spot to wire
  • Made in the USA

Product Information

Store SKU # 91000039964

Materials

Shipping & Returns

Dimensions

10
