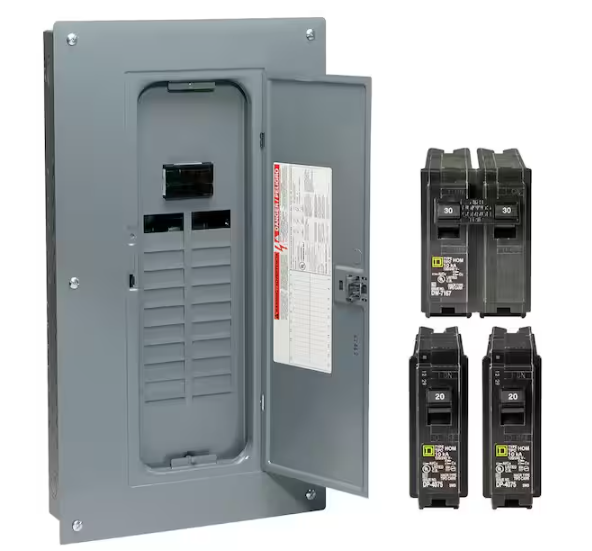

Homeline 100 Amp 20-Space 40-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover(HOM2040M100PCVP) - 91000040024

Highlights

• Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
• Each pole space is compatible with a Square D Homeline full-size, tandem or quad breakers
• Ground and neutral bars accept up to (3) #10-14 equipment grounds
• Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers, (1) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
• Accommodates plug-on secondary surge arrestor (sold separately)
• Overhead/underground feed simply by rotating the device before installing
• Single phase, Indoor Main Breaker Homeline Breaker Box
• Rated 120/240 VAC and 22,000 AIR short circuit current rating
• Automatic flush adjusting cover requires less time to complete the job
• Designed with straight-in mains to save expensive cable and time
• Distributed split branch neutral with terminal screws backed out offers up to 50% more terminals than UL requires, increases wiring flexibility, saves installation time and simplifies wiring
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
• 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
