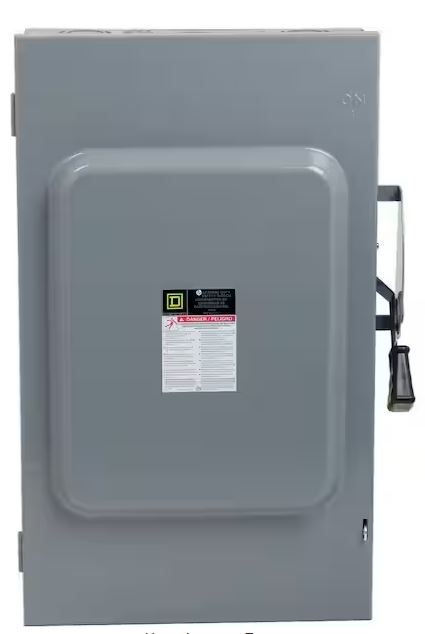

200 Amp 240-Volt 3-Pole 3-Phase Fused Indoor General Duty Safety Switch

200 Amp 240-Volt 3-Pole 3-Phase Fused Indoor General Duty Safety Switch

Regular price $1,032.03 USD
Regular price Sale price $1,032.03 USD
Sale Sold out

Highlights

  • This Safety Switch is compatible with Square D transformers, panelboards, load centers, lighting, contactors, I-Line and residential QO or Homeline circuit breakers, NQ & NF panels
  • 4-wire design with 3 blades and fuse holders and 1 neutral
  • 120/240 Volt AC
  • 200 Amp Maximum Rating
  • NEMA type 1 metallic enclosure for indoor use
  • 15.0 Horsepower 240 VAC single phase (standard)
  • 25.0/60.0 Horsepower 240 VAC 3 phase (standard/maximum) or corner grounded delta system
  • The lugs on this device will accept (1) #6-250 aluminium or conductor per phase.
  • 100 kA UL listed short circuit withstand rating maximum with class R fuses and class R kit RFK03H properly installed, sold separately
  • This safety switch is compatible with H, K, or R Fuse Type
  • Neutral bar included
  • UL listed
  • Protection from live parts with cover closed
  • Protection from arcing during switching
  • Provides emergency disconnecting means
  • Protects switching components from environment
  • Tangential knockouts for ease of installation
  • OSHA lockout
