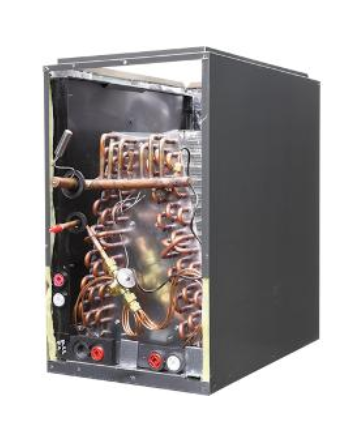

GOODMAN ASPEN CE48F34175L004

GOODMAN ASPEN CE48F34175L004

$700.39 USD
$700.39 USD
Sale Sold out

GOODMAN ASPEN CE48F34175L004

Nom. Tons: 4; Liquid Conn.: 3/8"; Suction Fitting: 7/8"; Width: 17-1/2"; Height: 30"; Depth: 21-1/2"; Wt. Lbs.: 80; Description: Cased; Configuration: Multi-Position; Metering Device: TXV; Color: Gray; Coil Type: Cased; TXV Included: Yes;

  • Manufacturer: Aspen Manufacturing
  • Brand: Aspen
  • Part #: CE48F34175L004
  • MPN: CE48F34175L004

DESCRIPTION

  • Rifled copper tubing, enhanced aluminum fins
  • Immersion-tested at 500 PSI, then nitrogen-pressurized and sealed
  • Left hand refrigerant and plumbing connections
  • Glass loaded nylon drain pans with four 3/4" FPT condensate drains
  • Pan is positively sloped toward drains
  • Refrigerant leakage test is required before coil is installed
  • ARI certifiable with Goodman, Coleman and Evcon AC & HP's (see AHRI website www.ahridirectory.org for current system match-ups)

Product Specifications

Coil Type Cased
Color Gray
Configuration Multi-Position
Depth 21-1/2"
Description Cased
Height 30"
Liquid Conn. 3/8"
Metering Device TXV
Nom. Tons 4
Suction Fitting 7/8"
TXV Included Yes
Width 17-1/2"
Wt. Lbs. 80
Shipping Weight 100.00
Shipping Width 19.00
Shipping Length 25.00
Shipping Height 31.00
