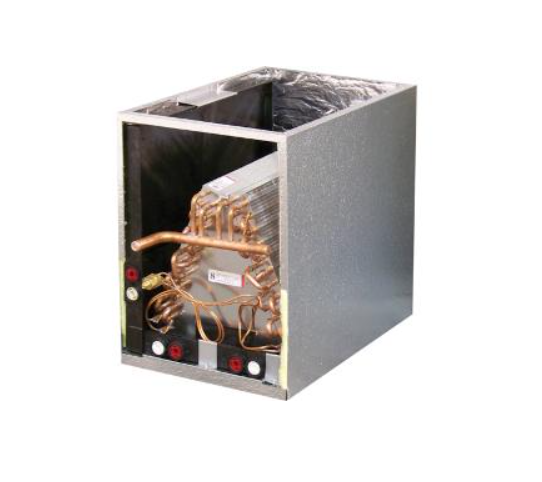

GOODMAN ASPEN CE48D44-175L-004

Aspen CE (DX-Treme) CE48D44-175L-004 Evaporator Coil, Left-Hand Cased Coil, 4 to

  • Manufacturer: Aspen Manufacturing
  • Brand: Aspen
  • Part #: CE48D44175L004
  • MPN: CE48D44-175L-004

DESCRIPTION

Aspen Evaporator Coil, Series: CE (DX-Treme), CE48D Model, 48000 Btu/hr BTU, Configuration: Horizontal, Upflow, Downflow, 4 ton, R-410 Refrigerant, Left-Hand Cased Coil, 3/8 in ODS Liquid, 7/8 in ODS Suction Connection, 0.08 in Piston Size, Copper Tube, Polyester-Painted, Gray, Cabinet - 17-1/2 in W x 30 in H x 21-1/2 in D

SPECIFICATIONS

Refrigerant Type      :      R-410
Dimensions      :      Cabinet - 17-1/2 in W x 30 in H x 21-1/2 in D

FEATURES

  • Rifled copper tubing, enhanced aluminium fins
  • Immersion tested at 500 lb/sq-in, then nitrogen-pressurized and sealed
  • Externally mounted flowrater body with Schrader valve for hiss-testing
  • Heavy-duty plastic upflow drains pans on most models, powder-coated galvanized steel horizontal drain pans standard on all
  • Embossed galvanized cabinets standard, cabinets feature furnace connectors (patent pending)
  • Upflow, horizontal right, or horizontal left without field modification, downflow applications require plate kit, included
  • Split access doors in front for easy service
  • Fully insulated cabinets with faced insulation
  • Assembled in the USA
  • Cased multi-position versa coil
  • Coil descriptor code (face area, rows, fins/in)
  • Non-bleed air conditioner or heat pump R-410 TXV metering device
  • 17-1/2 in W furnace
  • Left hand plumbing and refrigerant connections
  • Gray polyester painted metal cabinet, flanged top duct opening
