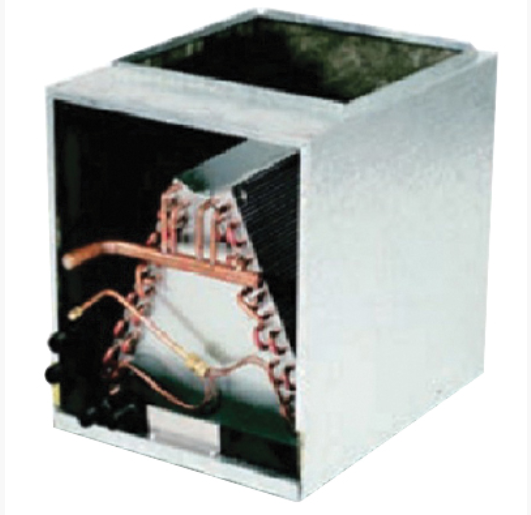

GOODMAN ASPEN CE30D44-140R-004

Aspen Evaporator Coil, Series: CE (DX-Treme), CE30D Model, 30000 Btu/hr BTU, Configuration: Horizontal, Upflow, Downflow, 2.5 ton, R-410 Refrigerant, Right-Hand Cased Coil, 3/8 in ODS Liquid, 3/4 in ODS Suction Connection, 0.059 in Piston Size, Copper Tube, Polyester-Painted, Gray, Cabinet - 14 in W x 27 in H x 21-1/2 in D

• Rifled copper tubing, enhanced aluminium fins
• Immersion tested at 500 lb/sq-in, then nitrogen-pressurized and sealed
• Externally mounted flowrater body with Schrader valve for hiss-testing
• Heavy-duty plastic upflow drains pans on most models, powder-coated galvanized steel horizontal drain pans standard on all
• Embossed galvanized cabinets standard, cabinets feature furnace connectors (patent pending)
• Upflow, horizontal right, or horizontal left without field modification, downflow applications require plate kit, included
• Split access doors in front for easy service
• Fully insulated cabinets with faced insulation
• Assembled in the USA
• Cased multi-position versa coil
• Coil descriptor code (face area, rows, fins/in)
• Non-bleed air conditioner or heat pump R-410 TXV metering device
• 14 in W furnace
• Right hand plumbing and refrigerant connections
• Gray polyester painted metal cabinet, flanged top duct opening
