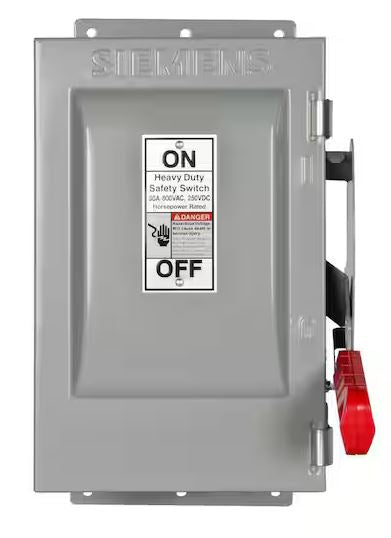

Heavy Duty 30 Amp 600-Volt 3-Pole Type 12 Non-Fusible Safety Switch - 9516939

Heavy Duty 30 Amp 600-Volt 3-Pole Type 12 Non-Fusible Safety Switch - 9516939

Regular price $430.86 USD
Regular price Sale price $430.86 USD
Sale Sold out
  • Highlights

    • 30 Amp, 3 pole, 600-Volt, 3 wire, non-fusible safety switch
    • NEMA type 12: enclosure is intended for indoor use primarily to provide a degree of protection against dust, falling dirt and dripping water, they are not intended to provide protection against conditions such as internal condensation
    • Quick-make, quick-break operating mechanism that ensures positive operation
    • Visible blade, double-break switching action
    • Arc chutes dissipate heat and prolong switch life
    • Highly visible red handle grip is designed for hook stick operation
    • Defeatable dual cover interlock
    • Center punch provided for field drilling to allow on padlocking
    • Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
    • Tangential knockouts for easy conduit lineup
    • Side-hinged door that opens past 180° for easier wiring
    • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
    • Spring reinforced fuse clips that assure reliable contact for cool operation
    • Front removable mechanical lugs that are suitable for CU/Al 60° or 75°C conductors
    • Lugs are field convertible to copper body and to a wide variety of compression connectors
    • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
    • Door latch securely holds door closed and allows cover padlocking

    Product Information



    Store SO SKU #9516939

    Materials

    Shipping & Returns

    Dimensions

    10
