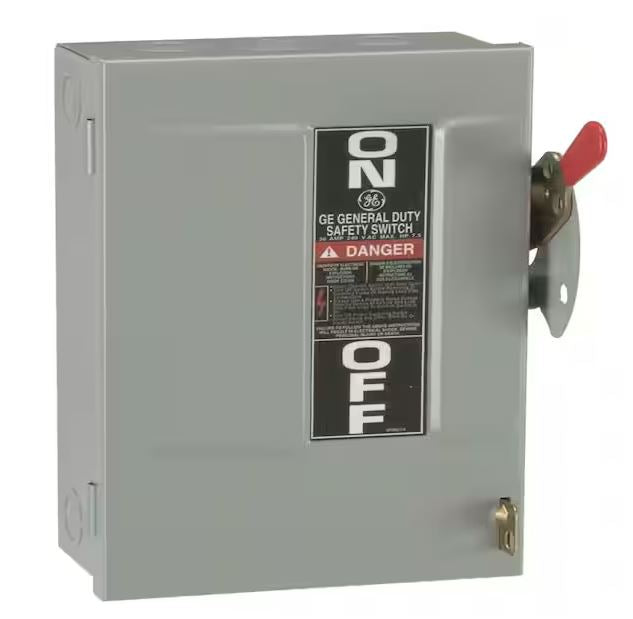

30 Amp 240-Volt Fusible Indoor General-Duty Safety Switch

Highlights

• Type-TG general-duty safety switch designed for residential and light commercial applications where duty is not severe
• Type-1 enclosure offers a durable polyester powder-coat finish for indoor applications
• Highly visible on/off label helps ensure safety and gives a clean, modern appearance
• Bright red handle is easy to see and grip
• Direct-drive, quick-make, quick-break mechanism snaps the contacts open and closed providing positive on/off indication while prolonging switch life
• Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
• 3-point mounting pattern simplifies installation and ganging in close quarters
• Plated stationary and movable contacts deliver reliability and long life
• Accepts class H, K and R type fuses
• Plated blades provide visible confirmation of contact position
• 3 pole, 4 wire, 30 Amp, 240-Volt maximum
• UL listed short-circuit rating of 10,000 rms symmetrical Amp
• CSA listed and ANSI certified
