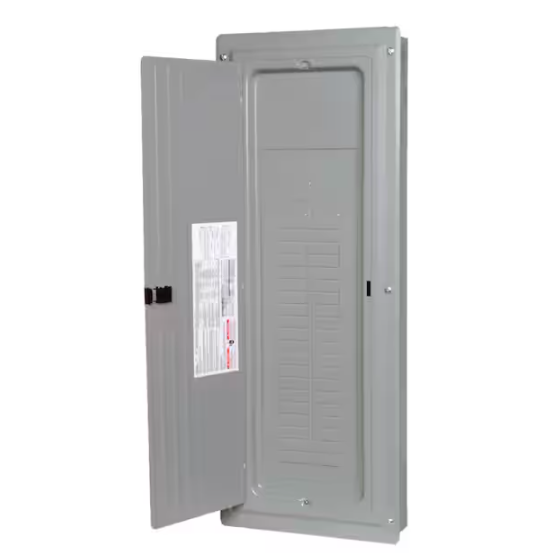

ES Series 225 Amp 42-Space 60-Circuit Main Lug Outdoor 3-Phase Load Center

ES Series 225 Amp 42-Space 60-Circuit Main Lug Outdoor 3-Phase Load Center

Regular price $560.64 USD
Regular price Sale price $560.64 USD
Sale Sold out

ES Series 225 Amp 42-Space 60-Circuit Main Lug Outdoor 3-Phase Load Center

Highlights

  • 3 phase, 120/240 or 120/208-Volt, 225 Amp main lug load center with 42-spaces/60-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Dual side inboard neutral
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies and reduces the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
  • Rigid, sturdy base pan provides ruggedness required for harsh applications
  • NEMA type 3: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
