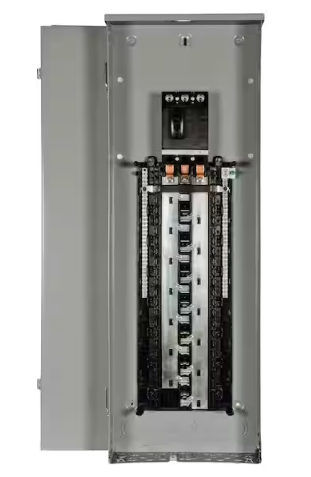

ES Series 200 Amp 42-Space 60-Circuit Main Breaker Outdoor 3-Phase Load Center

Highlights

• A 3-phase, 120/240-Volt, 200-Amp main breaker load center with 42-spaces/60-circuits
• Aluminum bus
• Ground bar field installed
• Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
• Dual side inboard neutral
• Invertible for bottom feed application
• All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
• Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
• Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
• Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
• Rigid, sturdy base pan provides ruggedness required for harsh applications
• NEMA type 3: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
