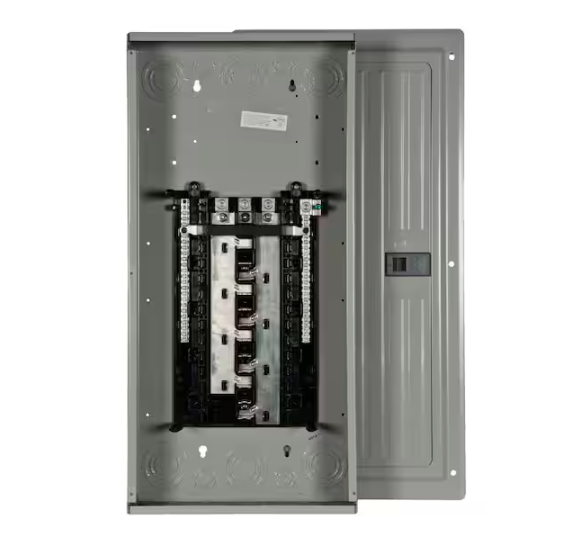

ES Series 200 Amp 24-Space 42-Circuit Main Lug Indoor 3-Phase Load Center

Highlights

• A 3-phase, 120/240 or 120/208-Volt, 200-Amp main lug load center with 24-spaces/42-circuits
• Aluminum bus
• Ground bar field installed
• Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
• Dual side inboard neutral
• Invertible for bottom feed application
• Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
• Pre-positioned bond screw eliminated bond straps/screw assemblies and reduces the risk of losing components in the field
• Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
• Rigid, sturdy base pan provides ruggedness required for harsh applications
• NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
