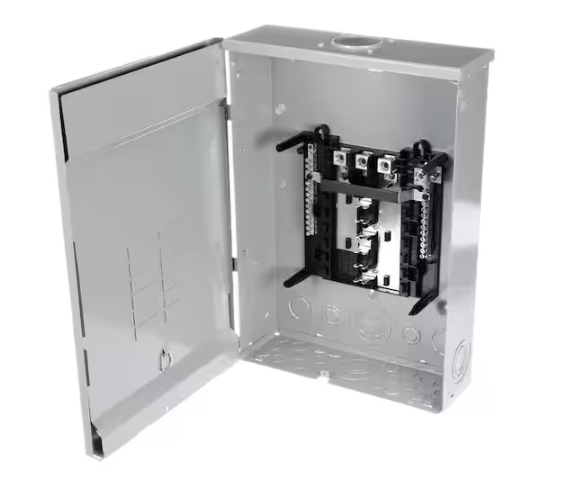

ES Series 200 Amp 12-Space 24-Circuit Main Lug Outdoor 3-Phase Load Center

Highlights

• 3 phase, 120/240 or 120/208-Volt, 200 Amp main lug load center with 12-spaces/24-circuits
• Aluminum bus
• Ground bar field installed
• Combination head screws on neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
• Single side inboard neutral
• Invertible for bottom feed application
• Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
• Pre-positioned bond screw eliminated bond straps/screw assemblies and reduces the risk of losing components in the field
• Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
• Rigid, sturdy base pan provides ruggedness required for harsh applications
• NEMA type 3: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
