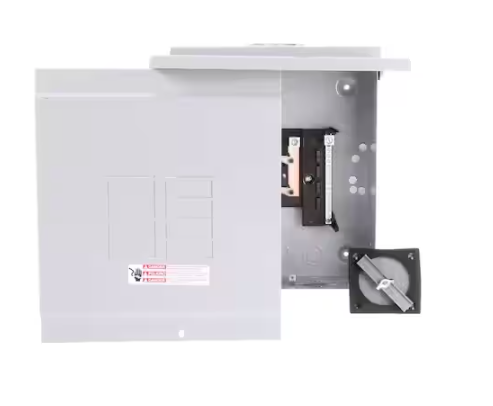

EQ 125 Amp 8-Space 16-Circuit Main Lug Outdoor Load Center - 9992715

EQ 125 Amp 8-Space 16-Circuit Main Lug Outdoor Load Center - 9992715

Regular price $94.56 USD
Regular price Sale price $94.56 USD
Sale Sold out

PowerMark Gold 125 Amp 8-Space 16-Circuit Outdoor Main Lug Load Center - 9368940

Highlights

  • For use as a main lug load center
  • Suitable for use as service entrance equipment when a main breaker is installed
  • NEMA 3R rated for outdoor use
  • G90 hot-dipped, galvanized-carbon-steel enclosure helps provide corrosion protection and has a hinged door that can be removed by backing out 1 screw
  • Powder coating of polyester paint using electrostatic process enhances corrosion protection and gives a great-looking finish, free of drips and runs
  • 1-piece copper buss bar is designed for use only with circuit breakers (not included) and offers excellent conductivity
  • Single phase
  • 3-wire
  • 120/240 VAC
  • 100,000 AIR
  • Insta-wire for quick conductor installation
  • Ideal for use where the environment can become severe, such as on farms and near coastal areas
  • ANSI certified and UL listed
  • Convertible from a main lug load center to a main breaker load center
  • Interior offers removal in seconds
  • Combination trim box in 1-package
  • Positive load-side circuit-breaker hook rails
  • Uses type HS hubs (not included)

Product Information

Store SKU # 9368940

Materials

Shipping & Returns

Dimensions

10

Care Instructions

View full details
