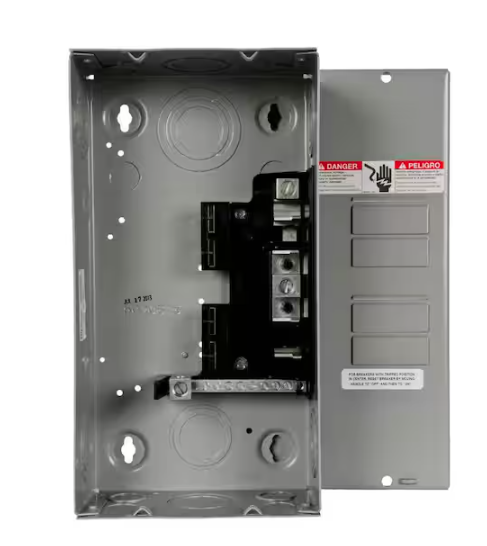

EQ 125 Amp 4-Space 8-Circuit Main Lug Surface Mount Indoor Load Center - 9992665
EQ 125 Amp 4-Space 8-Circuit Main Lug Surface Mount Indoor Load Center - 9992665
Regular price
$39.90 USD
Regular price
Sale price
$39.90 USD
Unit price
per
EQ 125 Amp 4-Space 8-Circuit Main Lug Surface Mount Indoor Load Center - 9992665
Highlights
- For use as a main lug load center
- NEMA type 1 rated for indoor use
- G90 hot-dipped, galvanized-carbon-steel enclosure helps provide corrosion protection
- Powder coating of polyester paint using electrostatic process enhances corrosion protection and gives a great-looking finish, free of drips and runs
- 1-piece aluminum buss bar is designed for use only with circuit breakers (not included)
- Single phase
- 3-wire
- 120/240 VAC
- 100,000 AIR
- ANSI certified and UL listed
- Surface mount
- Combination trim box in 1-package
- Positive load-side circuit-breaker hook rails
- Will not accommodate a double-pole GFCI or a circuit breaker with a shunt trip
- 100 Amp main breaker maximum (not included)
