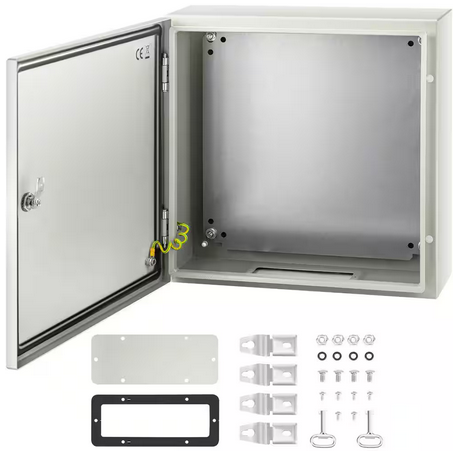

Electrical Enclosure 20 in. x 20 in. x 6 in. NEMA 4X Carbon Steel IP66 Waterproof and Dustproof Electrical Junction Box - 91007824441

Highlights

• Sturdy steel construction: made of 1.5 mm cold-rolled steel, precision cut and welded, our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments
• IP66 waterproof grade: comply with NEMA 4X & IP66, excellent water resistance, and dust resistance, direct us as the first option when unfulfilling your demands, VEVOR will resolve any feedback
• Reinforced lock & hinge: the high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing, the shell box adopts a high-quality lock core to increase safety and lockability
• Convenient operation: the junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components, the 4 wall-mounted mounting holes on the back can quickly fix the electrical box on the wall
• Exquisite details design: thebottom of the electrical box is designed to facilitate threading, the grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables
• Color: gray (RAL7032), material: 0.059 in./1.5 mm carbon steel , coating: epoxy polyester powder coating
• Mounting plate: 0.079 in./2 mm detachable galvanized backplate
• IP Rating: designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
• Connection type: hinged, feature: lockable, waterproof
• Galvanized backplate dimensions: 17.7 in. x 17.7 in. ,outer dimensions (W x H x D): 20 in. x 20 in. x 6 in. ,inner dimensions (W x H x D): 19.6 in. x 19.6 in. x 4.6 in.
• Product weight: 31.75 lbs., certification: CE/ROHS certification
• Package content :1 x electrical box ,2 x keys ,1 x mounting plate(the mounting plate has been assembled in the box) ,1 x set of wall mounting pendants ,1 x bottom sealing plate
