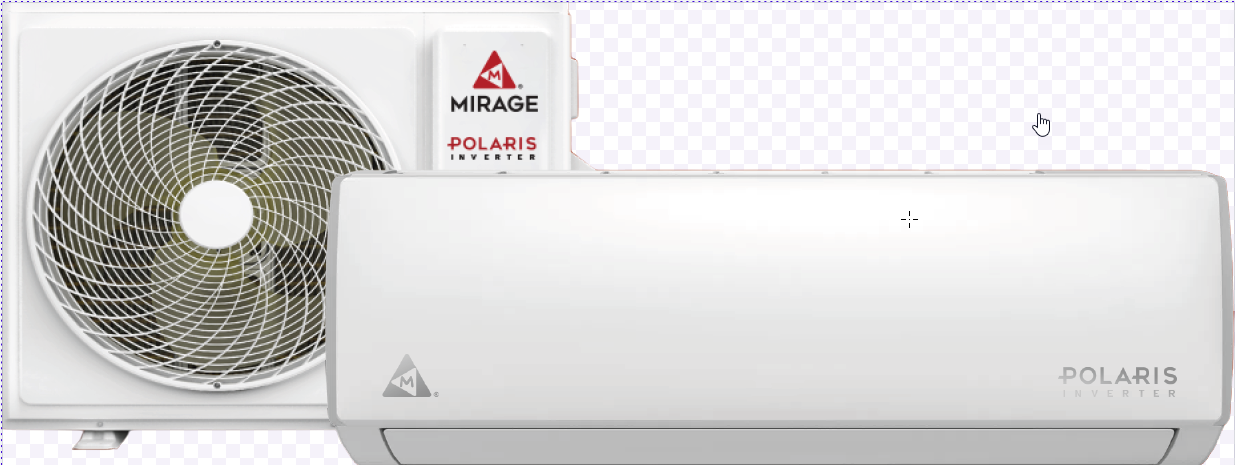

POLARIS INVERTER IPWH090C/OPWH090C - 0.75 Ton

POLARIS INVERTER IPWH090C/OPWH090C - 0.75 Ton

$790.00 USD
$790.00 USD
Sale Sold out
Type      cooling&heating
Control Type remote
Power Supply 115V~/60Hz/1P
Rated Cooling (95°F/35°C)  Rated cooling capacity (95°F) Btu/h 9000
EER² (95°F) Btu/W.h 11.7
SEER² Btu/W.h 19
Rated Heating Rated Heating capacity(47°F) Btu/h 10000
HSPF² Rating (Region IV) Btu/W.h 9.5
COP2 (47F/8.3C) W/W 3.81
Rated Input Consumption Cooling W 750
Heating W 750
Rated Current Cooling A 6.8
Heating A 6.8
Min. Circuit Ampacity A 16
Max Fuse A 25
Moisture removal Liters/h 1.1
Max Allowed Pressure PSI 750
Indoor Noise Level at Cooling Turbo/High/Med/Low/Mute 42/40/35/30/28
Outdoor Noise Level dB(A) 54
Connecting Pipe Gas inches 3/8''
Liquid inches 1/4''
Connecting Wiring Size x Core number 4×16AWG
Suitable area sq.ft Up to 400
Indoor Motor Motor Brand Weilling
Indoor air circulation Turbo/High/Med/Low/Mute CFM 342/270/235/200/152
Refrigerant Type R454B
Oz 23.28
Compressor Brand GMCC
Model KSN98D31UEZW31
Outdoor Motor Motor Brand Weilling
Net dimensions (W x D x H) Indoor inches 31.92x11.49x7.99
Outdoor inches 30.98x11.41x19.60
Net weight Indoor lbs 19.8
Outdoor lbs 51.8
Indoor Packing dimensions (W x D x H) Outdoor inches 34.84x14.40x10.82
Outdoor Packing dimensions (W x D x H) Without pipe inches 32.20x12.79x20.27
Outdoor Packing dimensions (W x D x H) With pipe inches /
Gross weight (without pipe) Indoor lbs 26.5
Outdoor lbs 55.8
Gross weight (with 5m pipe) Outdoor lbs /
Line Set ft 25
Maximum Line Length ft 50
Maximum Height Difference Between Indoor and Outdoor ft 33
Additional refrigerant charge oz/ft 0.11
Operation temperature °F 62~86
