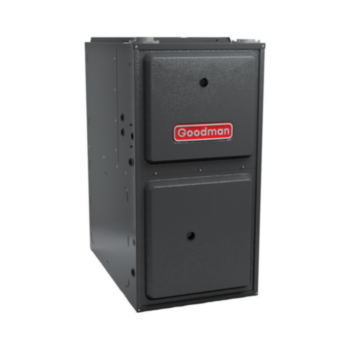

GOODMAN FURNACE 14" GM9S800603AU

Model GM9S800603AU

Goodman GM9S80 - 60k BTU - Ultra Low NOx Gas Furnace - 80% AFUE

AC - Match, GSXN401810, GSXN402410, GSXN403010, GSXN403610

Coil Match- CE36A34140R004

Overview

Product Category

Furnace

General Information

Type

Gas Furnace

Product Line

GM9S80

Product Category

Furnace

Fuel Type

Natural Gas

Vent Type

Chimney Vent

Modulating/Staging

Single Stage

Blower Motor Type

ECM Multi-Speed

Configuration

Upflow/Horizontal

Gas Conversion Kit

Available

DOE Regional Compliance

California Only Product

Performance

AFUE

80 %

Heating BTU

60000

High Fire Input

60000 BTU

High Fire Output

48000 BTU

Maximum Air Flow

1200 CFM

Ultra Low NOx Emissions

Yes

Low NOx Emissions

Yes

Electrical Data

Voltage

115 Volts

Phase

1

Frequency

60 Hz

Minimum Circuit Ampacity

8.7 Amps

Recommended Breaker Size

15 Amps

Dimensions

Flue Connection Size

4 Inches

Cabinet Width

14 Inches

Product Height

33 3/8 Inches

Product Width

14 Inches

Product Depth

28 Inches

Product Weight

90 Pounds

Shipping Weight

90 Pounds

Certifications

ETL Listed

Yes

Energy Star Listed

Yes

AHRI Certified

Yes

ISO Certified

Yes

AHRI Reference Number

207599841

Warranty Information

Parts Warranty

10 Years

Heat Exchanger Warranty

Lifetime Years
