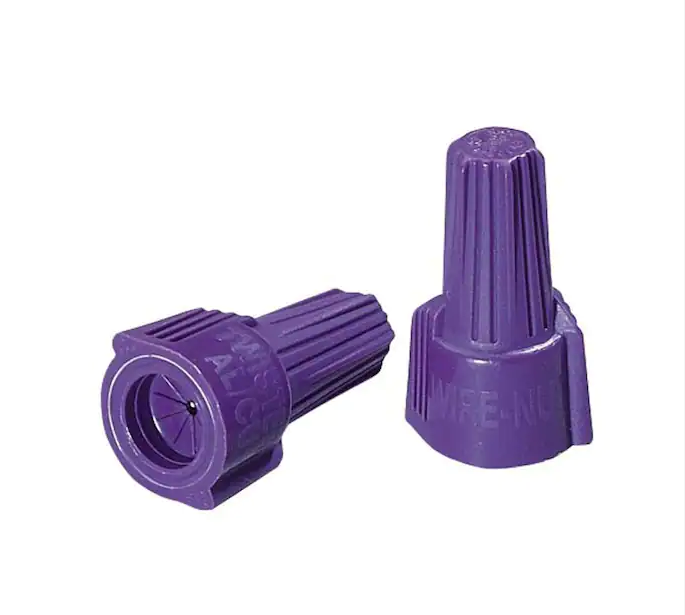

Twister Al/Cu Wire Connectors, Purple (10-Pack) - 9643047

Highlights

• Aluminum-to-copper and copper-to-copper twist-on connector - do not use on aluminum-to-aluminum connections
• UL Listed and CSA Certified for aluminum-to-copper connections, as well as the only twist-on solution to comply with the National Electric Code Section #110-14 (b)
• Compact, 1-piece design features ribbed cap, swept wings and hexagonal head for easy installation by hand or with standard nutdriver
• Live-action, square-wire spring expands and contracts with aluminum wiring
• Deep skirt provides maximum dielectric strength
• Tough UL 94-Volt-2 flame-retardant shell rated at 221 degree F
• UL listed to 486C and CSA certified to C22.2 #188
• Pre-filled antioxidant compound prevents oxidation of aluminum conductors
• Global components
• Approved for bonding and grounding applications
• Twister AL/CU wire connectors are designed as a one-use only connection - do not reuse
• Minimum wire capacity: 1 #12 Al with 1 #18 Cu
• Electrical product type: wire connector
• Maximum wire capacity: 1 #10 Al solid with 2 #10 Cu solid warranty/certifications
• Certifications and listings: UL listed to 486C and CSA certified to C22.2 #188
