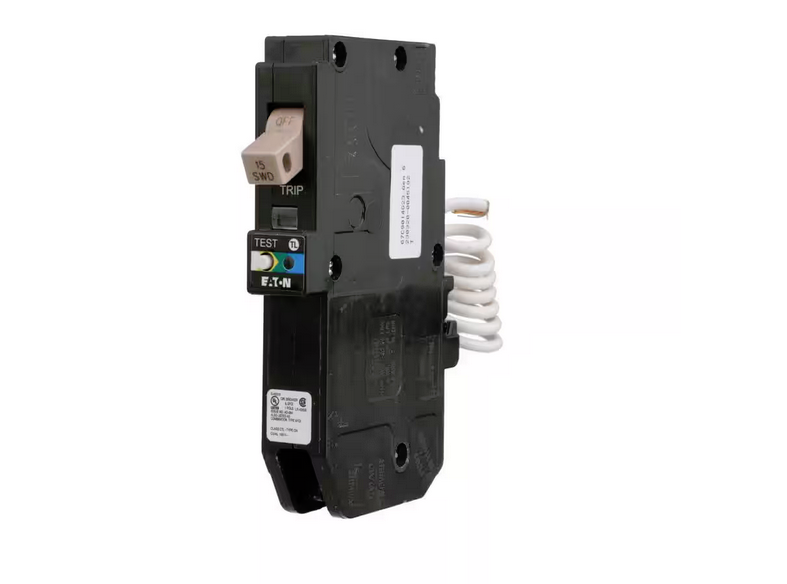

CH 15 Amp All in One AF/GF Breaker - 91004856154

Highlights

• 1-pole, 15-amp, 120-volt
• Standard pigtail
• Compatible for use in eaton type CH load centers and meter breaker panels
• Interrupt rating-10-kAIC
• Provides 1-device for both arc fault (AFCI) and ground fault (GFCI) protection for the entire circuit, allowing for a single point of reset
• Offers complete protection from AFCI and GFCI for the entire circuit, including home-runs
• Enables a lower installed cost versus other code-approved alternatives by using only one device to achieve both AFCI and GFCI protection
• Integral LED indicates different trip causes including thermal overload indication, thus reducing troubleshooting time
• Thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions
• Includes a trip flag to differentiate between a trip and the breaker being turned off
• Trip codes are stored permanently into the breaker's memory, to help identify "trip" history
• Reduced clutter of pigtails provides a clean gutter space and professional appearance
• Handles are marked with on-off indication and ampere rating of the breaker
• Meets areas requiring AFCI protection under the 200-and all subsequent edition of the NEC
• Limited lifetime warranty
