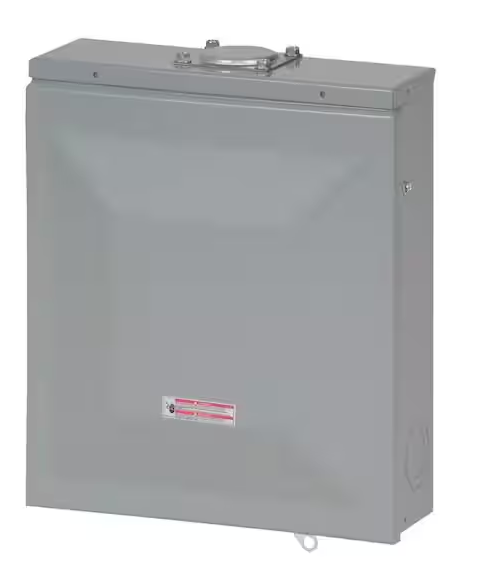

CH 125 Amp 4-Space 8-Circuit Outdoor Main Lug Loadcenter with Cover - 91000497084
Highlights
- Amperage rating: 125
- Bus material: copper
- Rated NEMA 3R for outdoor use
- Feed type: overhead
- Number of circuits: 8
- Number of spaces: 4
- Phase: single-phase
- Voltage rating: 120/240
- Wire size: #14-1/0 AWG
- Tangential center knockout easier installation for conduit applications
- Steel back pan provides solid and reliable breaker mounting single piece design for stability and durability
- Single keyhole mounting - 1 keyhole at the top provides easier mounting and leveling
- Drywall marking on enclosure - indicates proper mounting depth for flush applications
- Used with: type CH breakers
