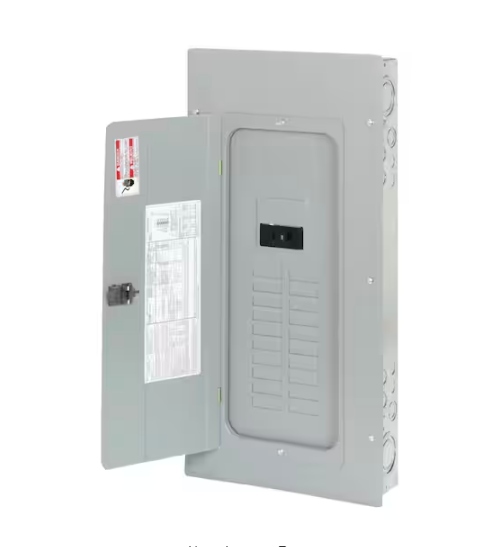

BR 200 Amp 20 Space 40 Circuit Indoor Main Breaker Loadcenter with Combination Cover - 9531639

Highlights

• Amperage rating: 200
• Bus material: aluminum
• Rated NEMA 1 for indoor use
• Feed type: bottom or top which allows for straight-in wiring that saves labor and material
• Interrupt rating: 25 kAIC
• Mounting: combination
• Number of circuits: 40
• Number of spaces: 20
• Phase: single-phase
• Tangential center knockout easier installation for conduit applications
• 2/0 lug easily removable and can be installed in any location on the neutral bar
• Neutral bus (strap) is easily removable for sub-panel applications
• Bonding Z-strap provides easy field conversion for service entrance applications
• Twin neutral bars minimum 150% neutral capacity
• Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
• Single keyhole mounting - 1 keyhole at the top and bottom provides easier mounting and leveling
• Used with: type BR breakers
