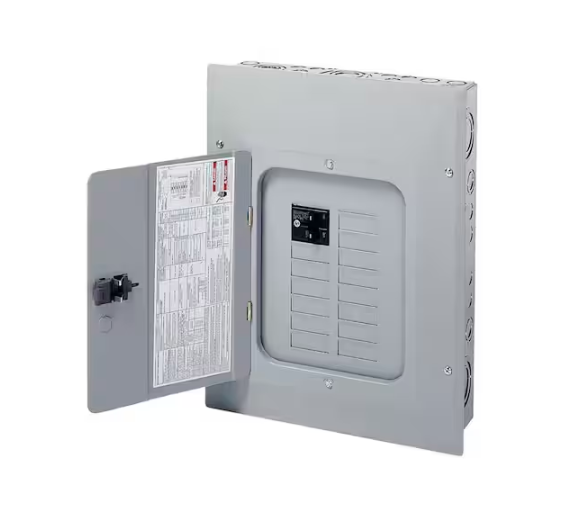

BR 100 Amp 12 Space 20 Circuit Indoor Main Breaker Loadcenter with Combination Cover - 9284944
BR 100 Amp 12 Space 20 Circuit Indoor Main Breaker Loadcenter with Combination Cover - 9284944
Regular price
$75.24 USD
Regular price
Sale price
$75.24 USD
Unit price
per
BR 100 Amp 12 Space 20 Circuit Indoor Main Breaker Loadcenter with Combination Cover - 9284944
Highlights
- Amperage rating: 100
- Bus material: aluminum
- Rated NEMA 1 for indoor use
- Feed type: bottom or top which allows for straight-in wiring that saves labor and material
- Interrupt Rating: 10 kAIC
- Mounting: surface
- Number of circuits: 20
- Number of spaces: 12
- Phase: single-phase
- Tangential center knockout easier installation for conduit applications
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Neutral bus (strap) is easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
- Twin neutral bars minimum 150% neutral capacity
- Steel back pan provides solid and reliable breaker mountingsingle piece design for stability and durability
- Single keyhole mounting - 1 keyhole at the top and bottom provides easier mounting and leveling
- Used with: type BR breakers
