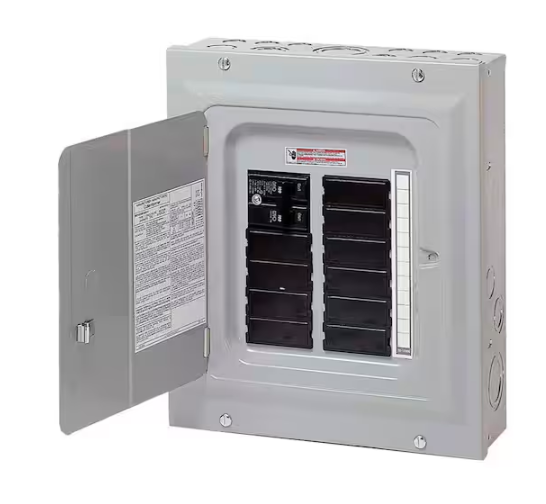

BR 100 Amp 10 Space 20 Circuit Indoor Main Breaker Loadcenter with Combination Cover - 9303896
BR 100 Amp 10 Space 20 Circuit Indoor Main Breaker Loadcenter with Combination Cover - 9303896
Regular price
$90.61 USD
Regular price
Sale price
$90.61 USD
Unit price
per
BR 100 Amp 10 Space 20 Circuit Indoor Main Breaker Loadcenter with Combination Cover - 9303896
Highlights
- Amperage Rating: 100A
- Rated NEMA 1 for indoor use
- Feed Type: Bottom or Top which allows for straight-in wiring that saves labor and material
- Interrupt Rating: 10 kAIC
- Mounting: Surface
- Number Of Circuits: 20
- Number of Spaces: 10
- Phase: Single-phase
- "Tangential" center knockout easier installation for conduit applications
- 2/0 Lug easily removable and can be installed in any location on the neutral bar
- Neutral Bus (Strap) is easily removable for sub-panel applications
- Bonding Z-Strap provides easy field conversion for service entrance applications
- Twin neutral bars minimum 150% neutral capacity
- Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
- Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
- Used With: Type BR breakers
