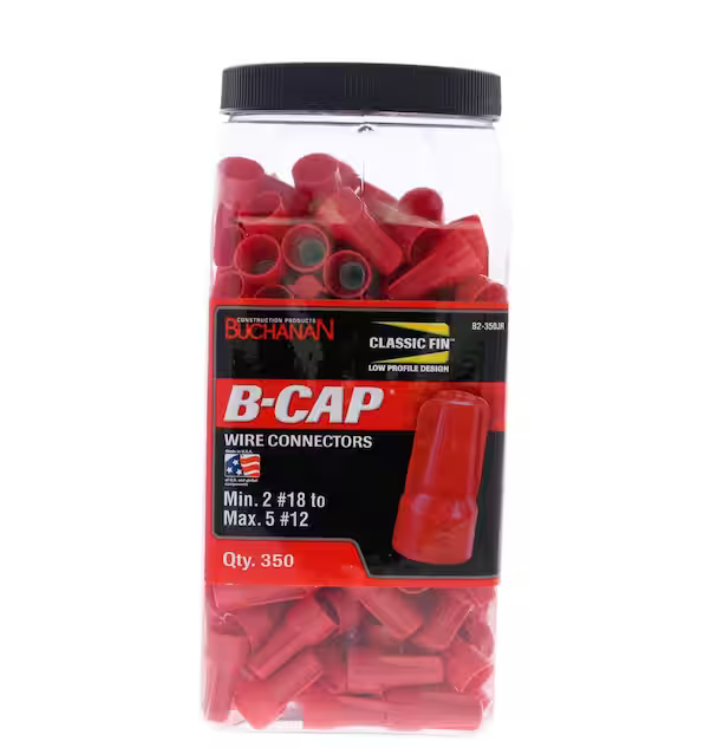

B-CAP Red Wire Connectors (Jar of 350) - 91002804103

Highlights

• Use to connect bare copper wiring
• Live-action spring expands to accept wire shape and size with no pre-twisting required
• For use with #22 to #8 AWG copper conductors
• Minimum wire range: 2 #18 AWG, maximum wire range: 5 #12 AWG
• Rated to 600-Volt max
• Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection
• Tough UL 94-Volt-2 flame-retardant shell rated at 221°F
• UL listed to 486C and CSA certified to C22.2 #188
• Compliant with federal specification W-S-610E
• Square-wire spring threads directly onto conductors for fast, secure connections
